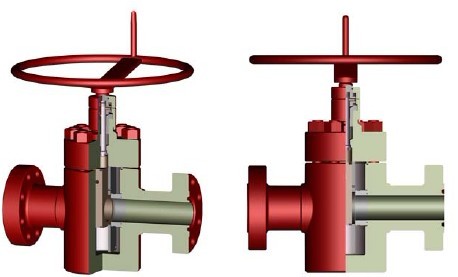

API 6A Gate Valves

API 6A Gate Valves provided by CCSC are field proven valves which strictly designed and manufactured according to API 6A and API Spec Q1 by forging or casting AISI 4130/4140 low alloy or AISI 410 SS steel. Some extreme materials for extreme service, such as Inconel or Duplex stainless steel are available as well.





CCSC Gate Valves' feature:

  • 1. Forged or Cast Body & Bonnet,
  • 2. Metal-to-Metal seal, gate to seat, seat to body, bonnet seal and stem backseat.
  • 3. Bi-directional Sealing,
  • 4. All internal parts can be inline changed.
  • 5. Heavy duty thrust bearing is used to absorb stem thrust and reduce operating torque.



  • 6. Non-rising stem made by Alloy-nitrided or 17-4 stainless steel, the pressure in the body cavity will not increase during valve operation, can replace stem packing under pressure.

Avalaible Specication

Bore Size 1 13/16” – 9”
Working Pressure 2,000psi – 20,000psi
Material Class AA - HH
Working Temperature 75°F - 350°F
PSL 1 - 4
PR 1 - 2

-----------------

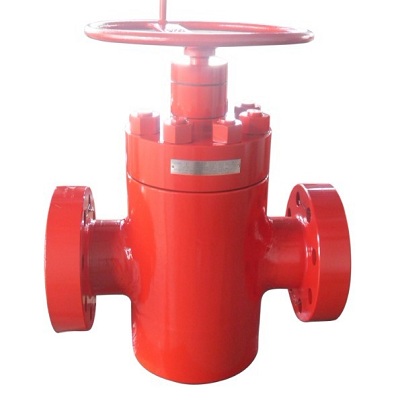

CAMERON Gate Valve 'FC' type - FC Gate Valve



CAMERON Gate Valve 'FC' type is a field-proven valve which provides reliability and interchangeability, bi-directional sealing and a non-rising stem making it ideally suited for drilling Manifolds, X-mas trees and severe service,one piece gate helps to prevent line sediment from entering the body cavity and prevents pressure locks when the upstream pressure drops,Easily equipped with Hydraulic Actuators for Manifold or Subsea service.





CCSC Gate Valves' feature:

  • 1. Forged or Cast Body & Bonnet, A wide range of body and trim materials to meet various operating conditions.
  • 2. Metal-to-Metal seal, gate to seat, seat to body, bonnet seal and stem backseat.
  • 3. Bi-directional Sealing,
  • 4. All internal parts can be inline changed,No special tools are needed to change gate and seat assembly.
  • 5. Heavy duty thrust bearing is used to absorb stem thrust and reduce operating torque.



  • 6. The Stem pin protects the stem and internal parts from failure by shearing if the handwheel is over-torqued



Available Specication

Bore Size 1 13/16” – 9”
Working Pressure 2,000psi – 20,000psi
Material Class AA - HH
Working Temperature 75°F - 350°F
PSL 1 - 4
PR 1 - 2
